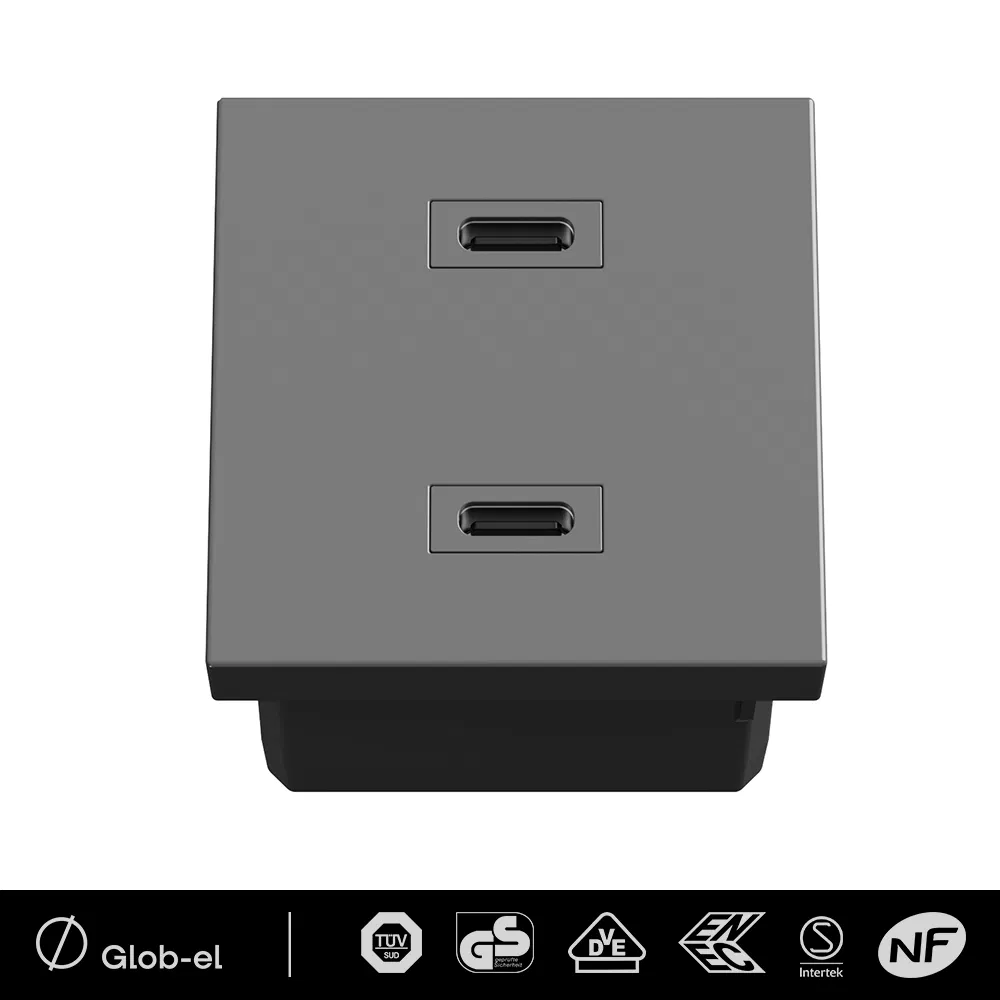

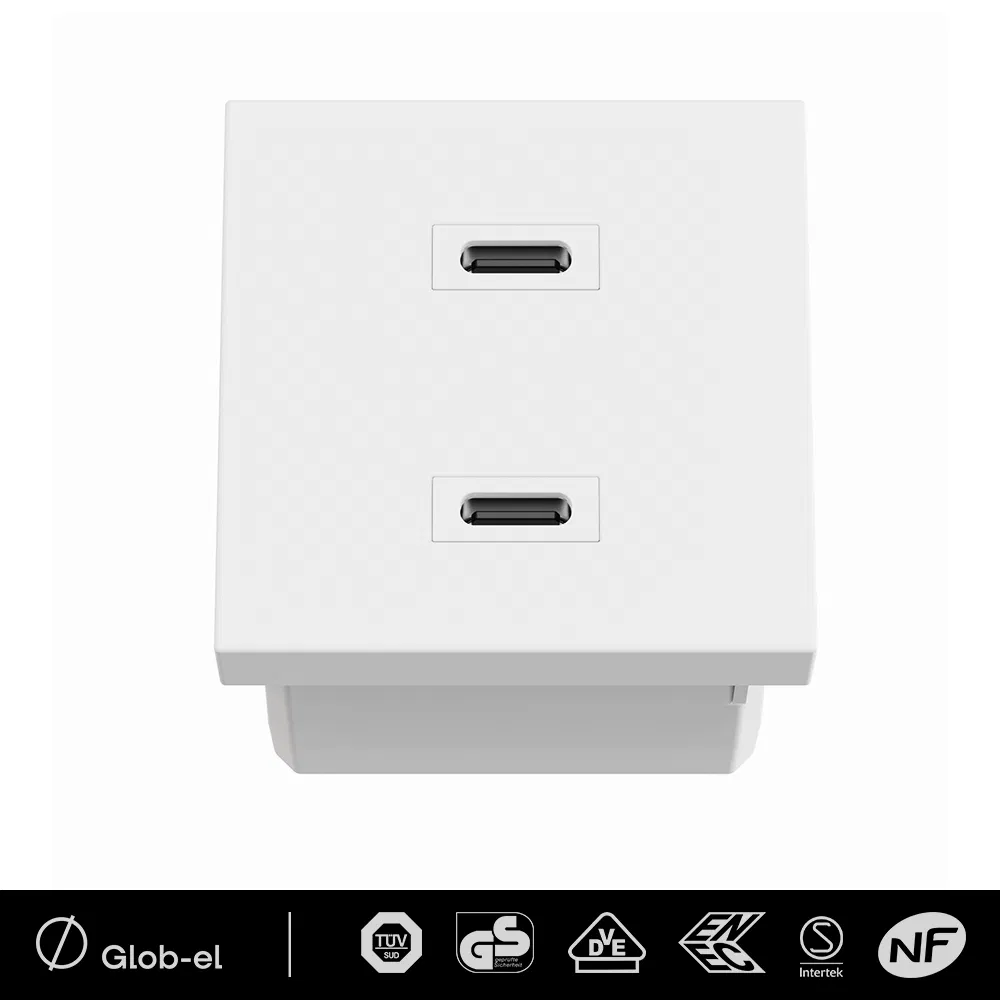

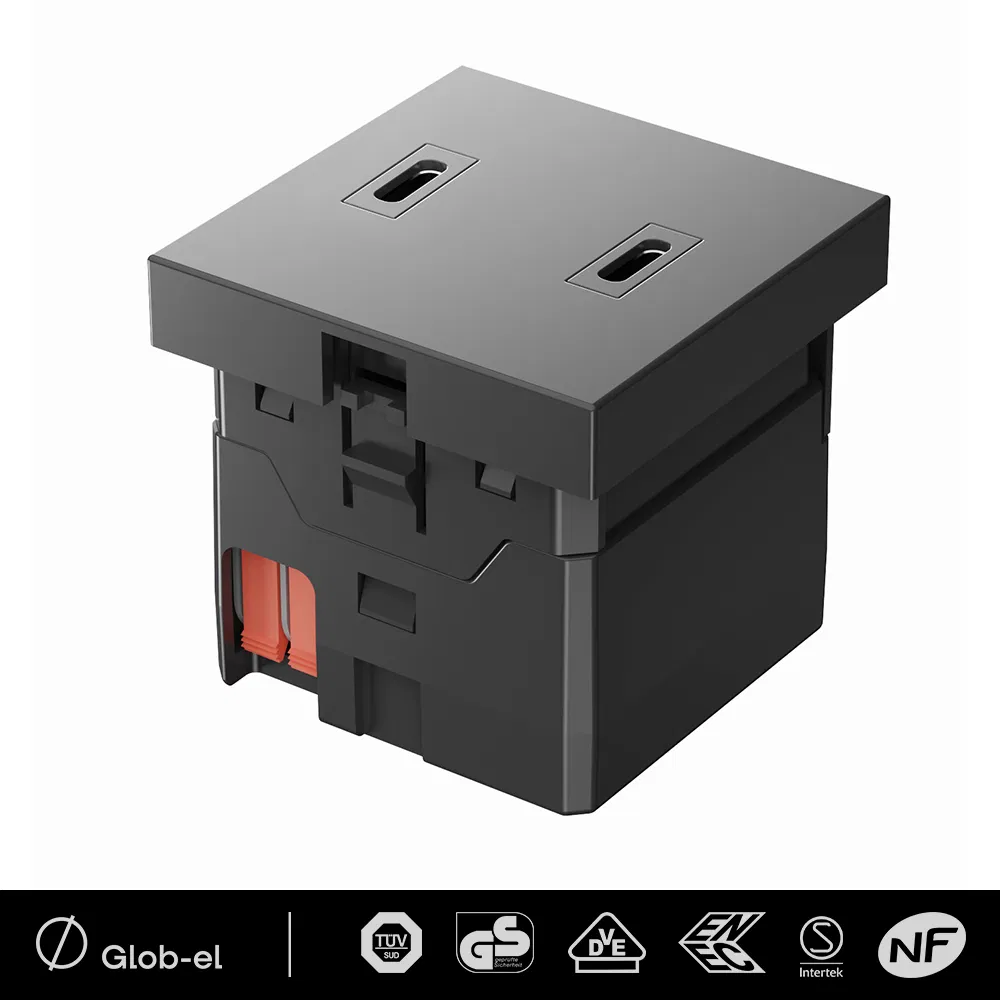

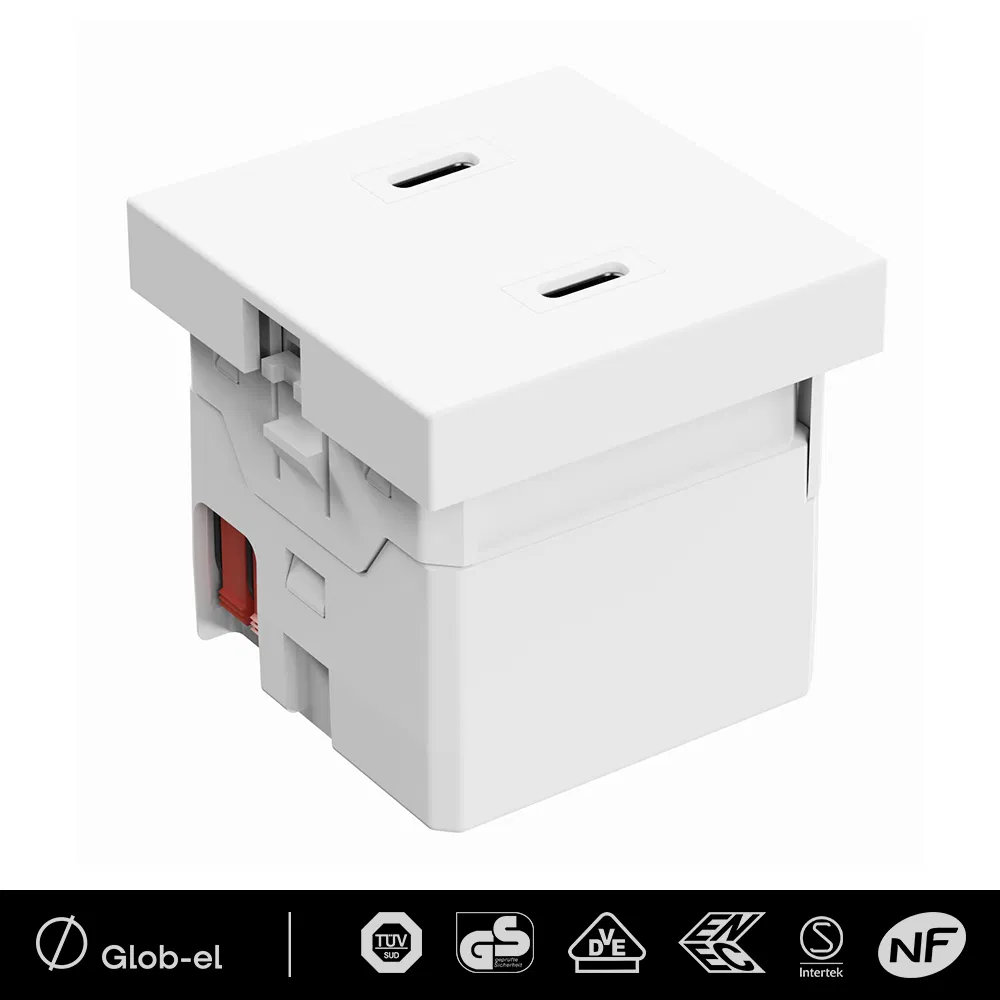

Library Desk Integrated Power Module USB C+C 45mm Silent Operation
Library Desk Integrated Power Module USB C+C 45mm Silent Operation
Library Desk Integrated Power Module USB C+C 45mm Silent Operation
Library Desk Integrated Power Module USB C+C 45mm Silent Operation
Library Desk Integrated Power Module USB C+C 45mm Silent Operation
1 / 5
Library Desk Integrated Power Module USB C+C 45mm Silent Operation
Library Desk Integrated Power Module USB C+C 45mm Silent Operation
Library Desk Integrated Power Module USB C+C 45mm Silent Operation
Library Desk Integrated Power Module USB C+C 45mm Silent Operation
Library Desk Integrated Power Module USB C+C 45mm Silent Operation

Library Desk Integrated Power Module USB C+C 45mm Silent Operation

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.1 C+C 20W
Number of HolesPorous
ApplicationCommercial, Industrial, Residential
GroundingNon-Grounding
IP RatingIP20
CertificationCE, ROHS
Operating Voltage100-250 V
Frequency50-60 Hz
Output Voltage5/9/12V
Mounting MethodFlush-Mounted
Dimensions45 x 45 x 42 mm
ColorWhite/Black (RAL 9003/9017)

Product Description

Power Module Feature 1

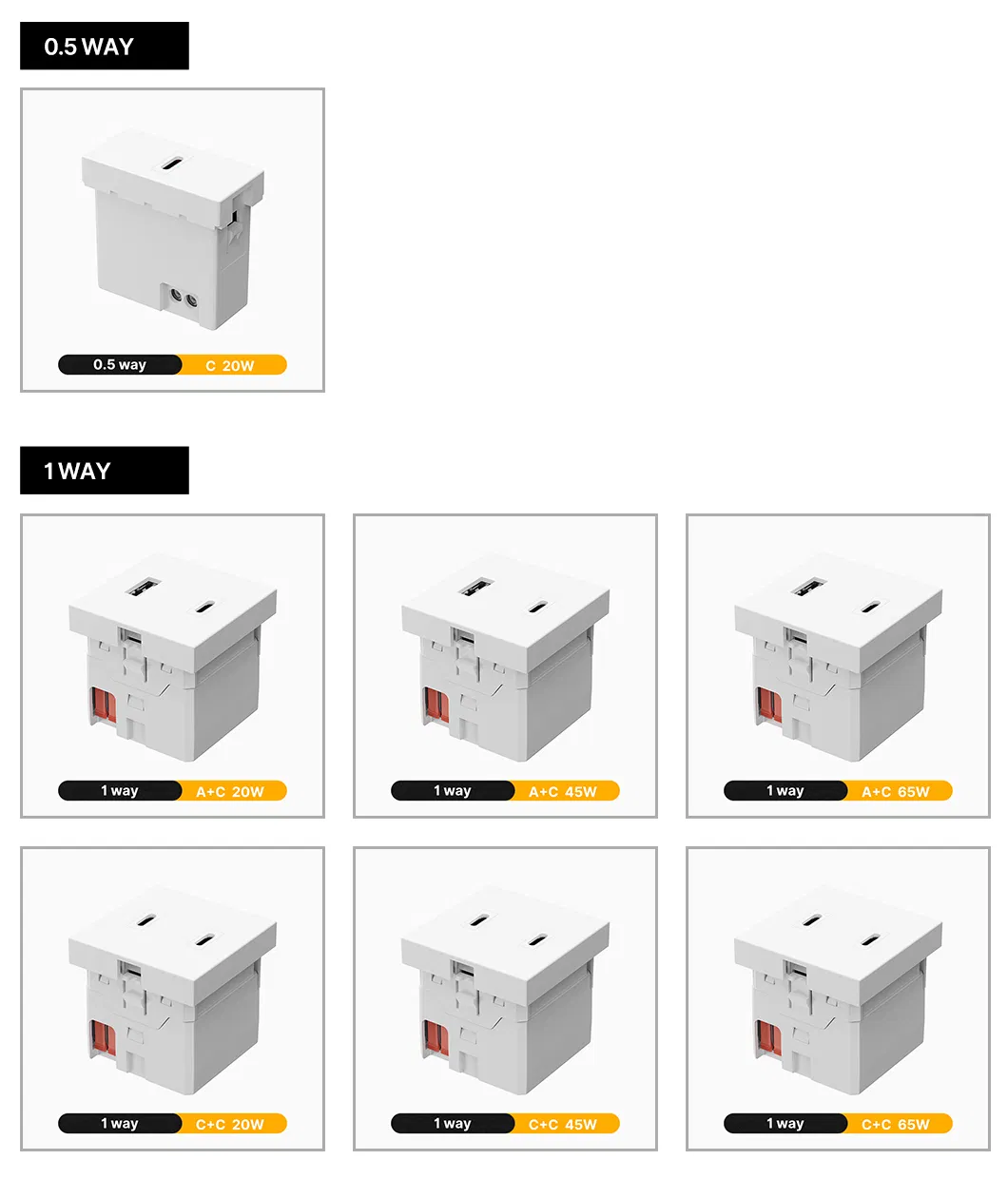

Power Module Feature 2
USB-C Ports2
Max. Output Current3000 mA
USB Output Power45W
Power ConsumptionLess than 0.3W
Connection TypeQuick connection terminal
Impact StrengthIK04
Operating Temperature0-35℃
Halogen FreeYes
Terminal Capacity1.5-2.5 mm²
Cable Section1.5-2.5 mm²

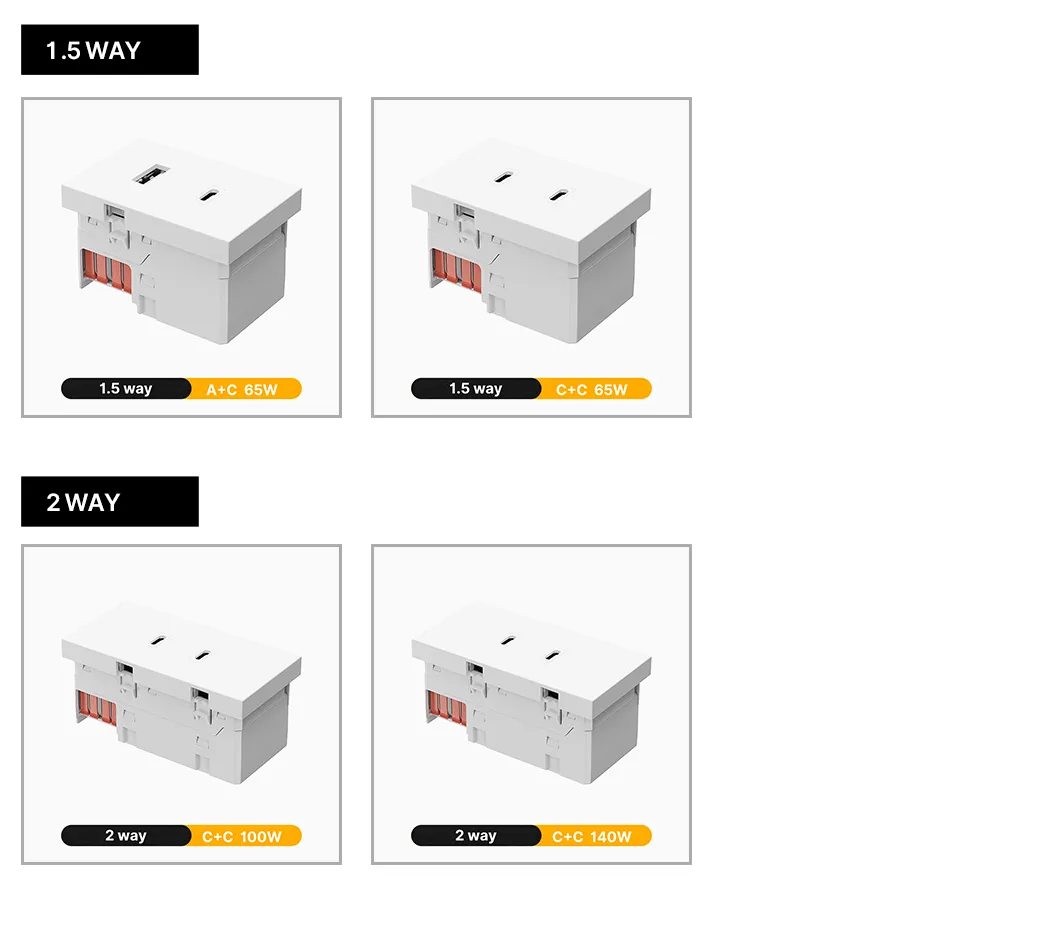

Dimensions Detail

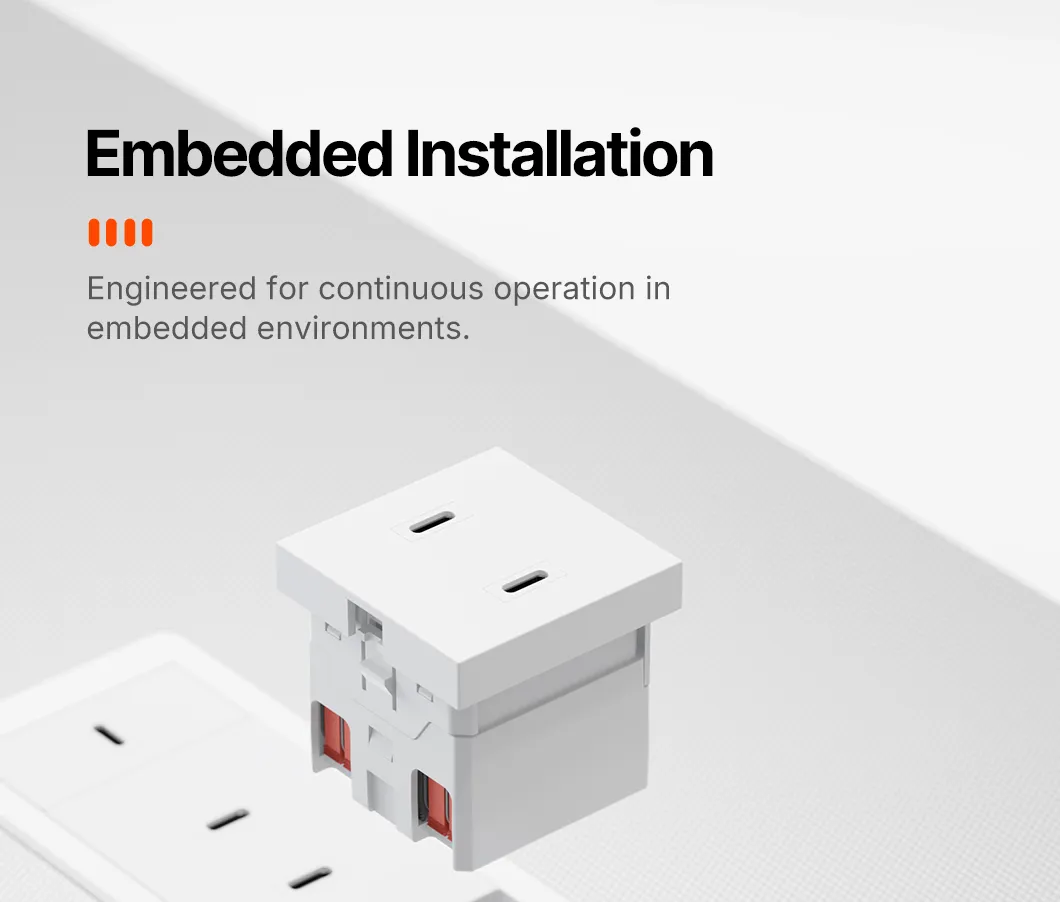

Application Scene 1

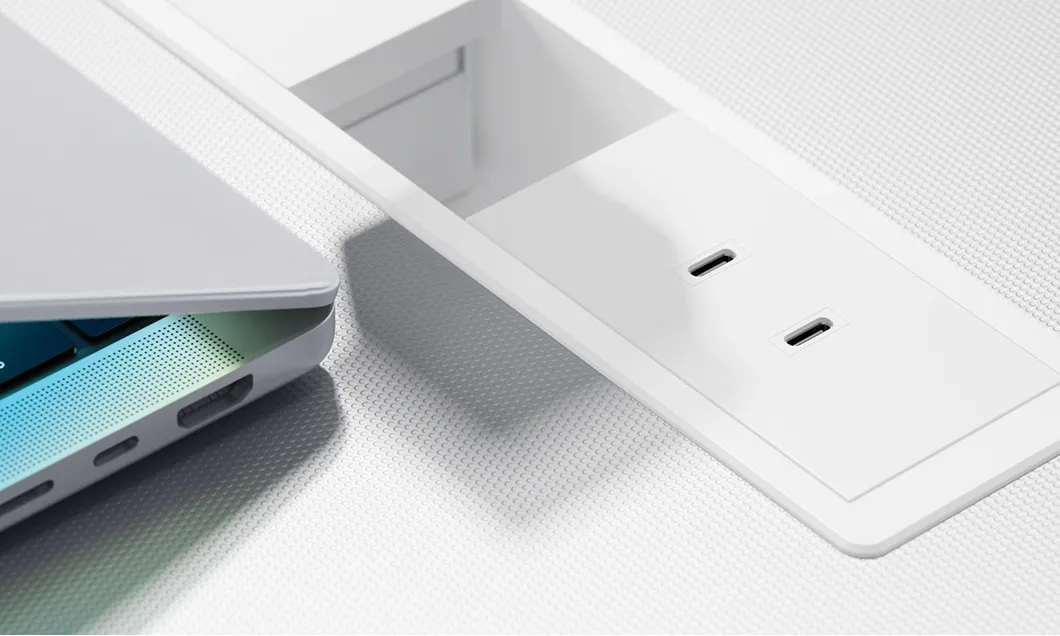

Application Scene 2

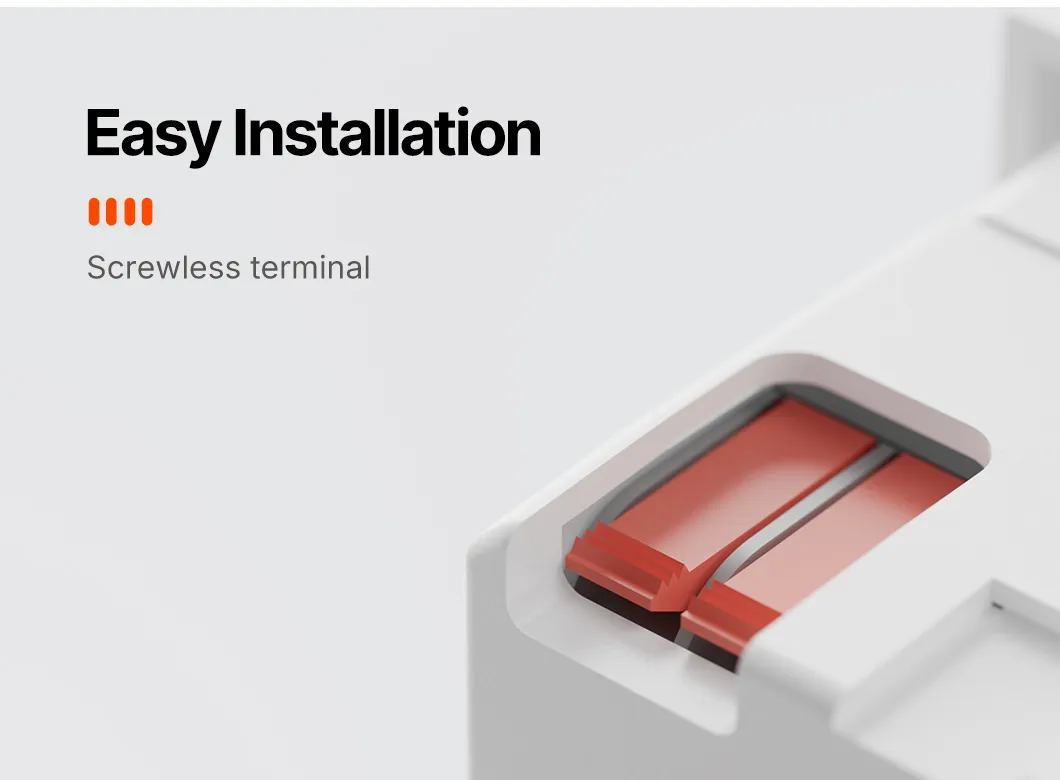

Internal Components

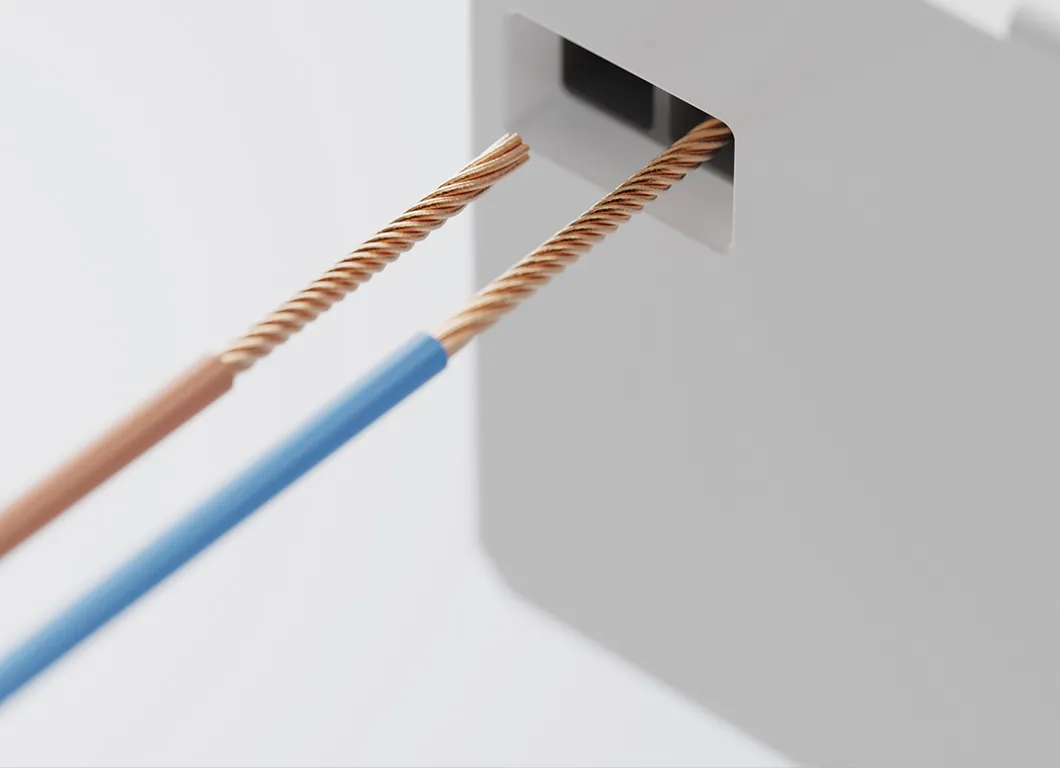

Safety Features
Installation Guide
Design Specs
Port Configuration
Efficiency Info

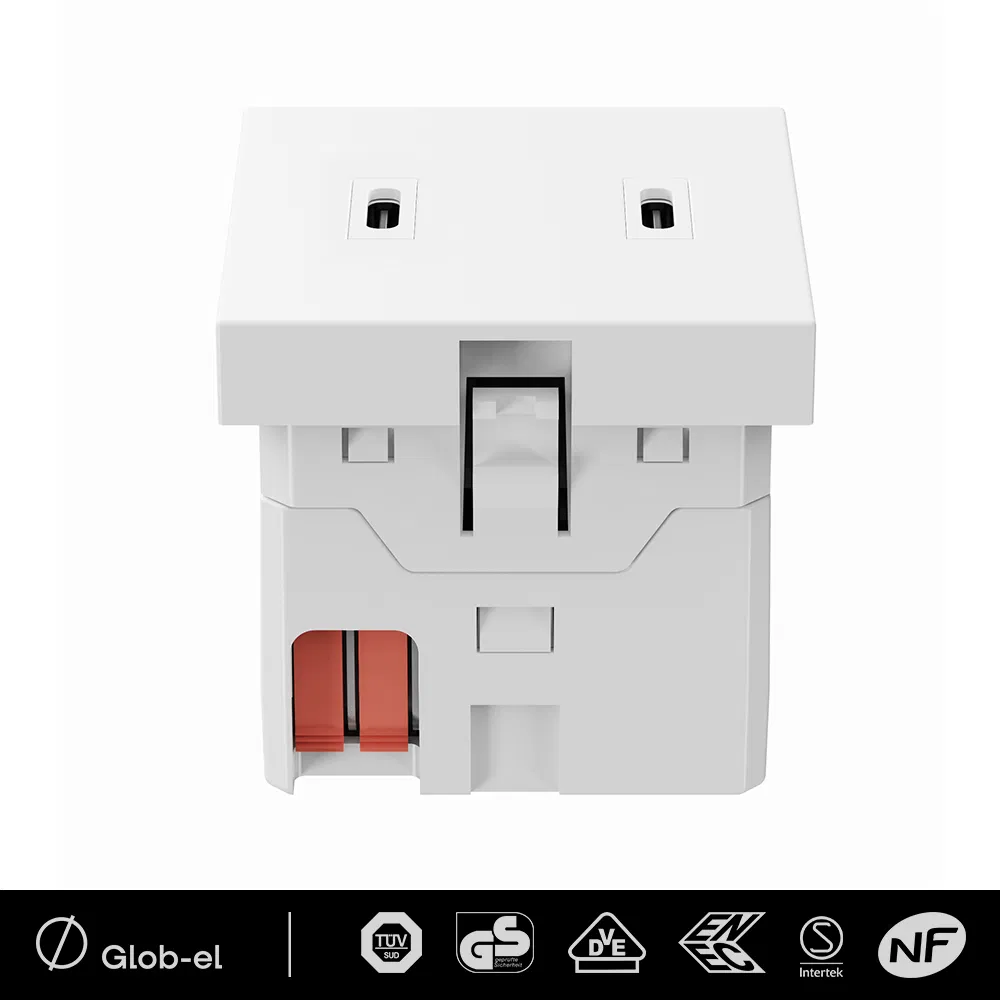

Terminal View
Color Options

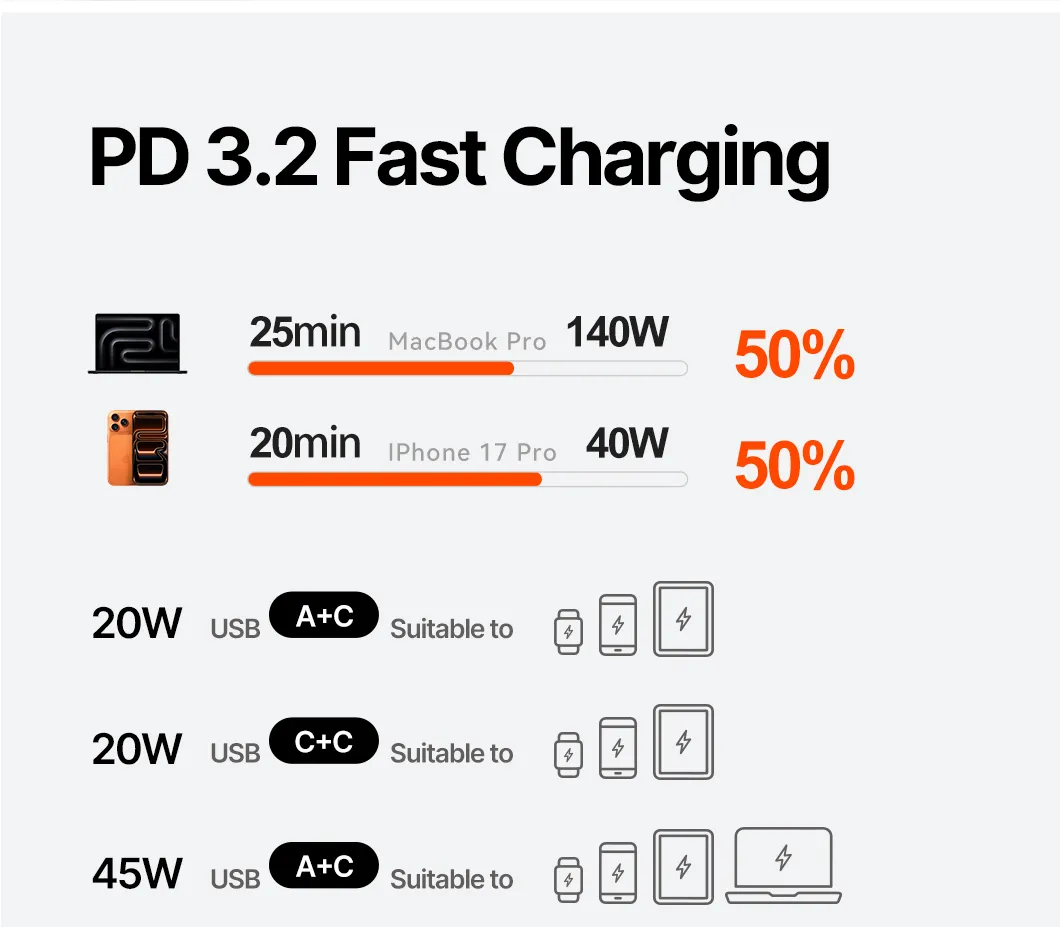

Flush Mounted View

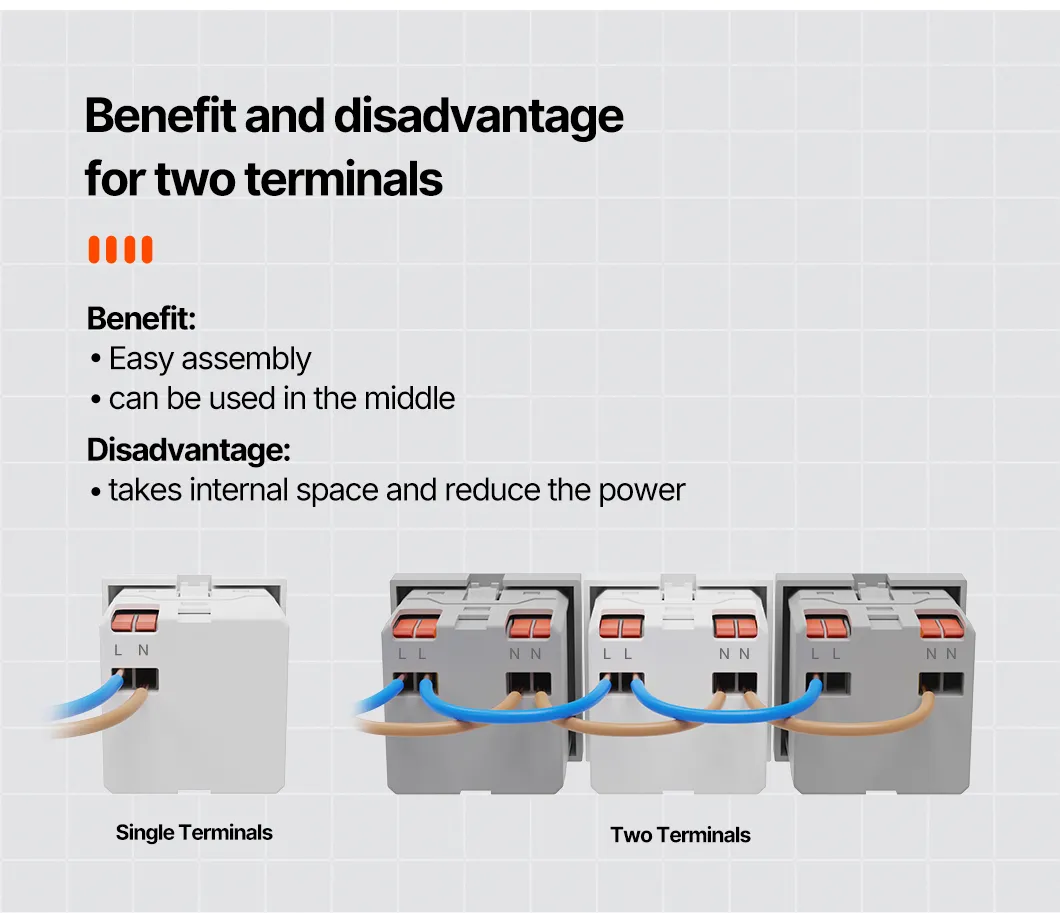

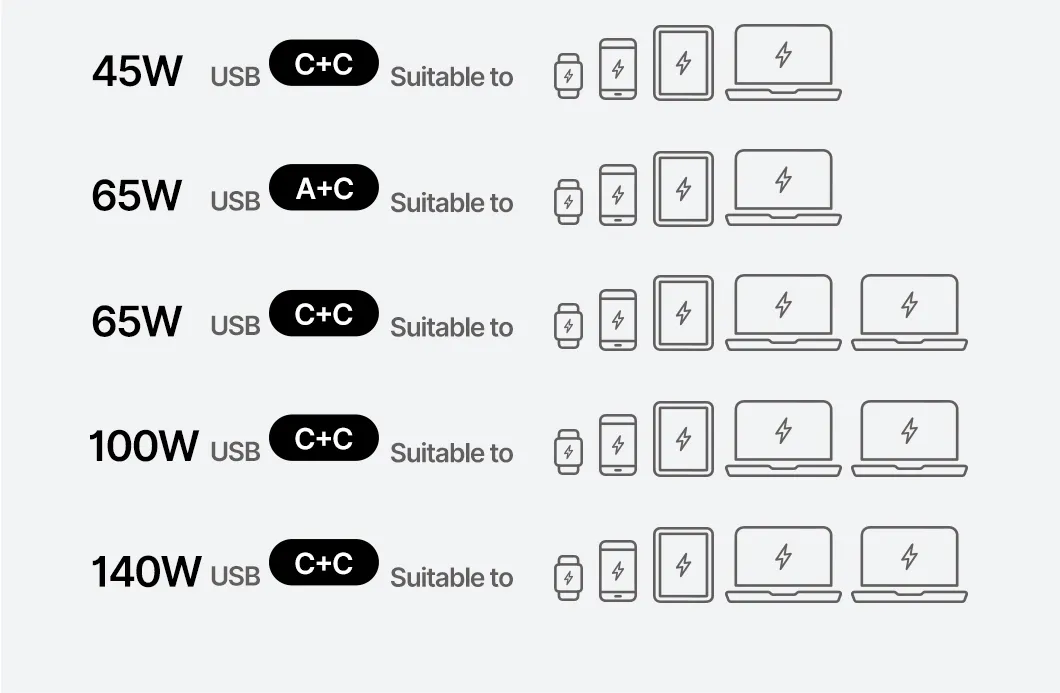

Quick Connection Terminal
Usage Environment
Final Product Overview

Frequently Asked Questions

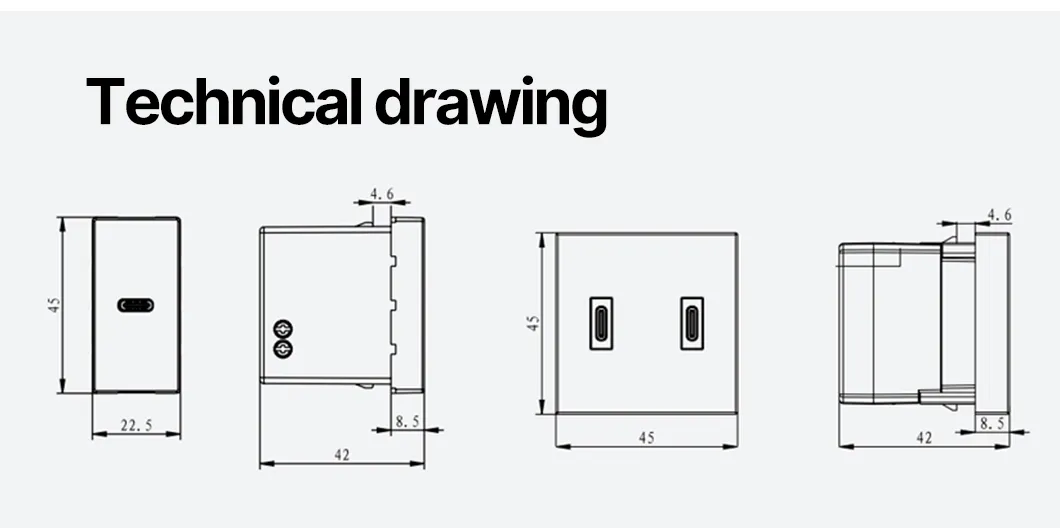

What are the physical dimensions of this USB module?
The device measures 45 mm in width, 45 mm in height, and 42 mm in depth, making it a compact solution for flush-mounted installations.
How many and what types of charging ports are available?
This module is equipped with 2 USB-C ports. It does not feature any USB-A ports.
What is the power output capability of the USB ports?
The module supports a maximum output current of 3000 mA with a total USB output power of up to 45W, supporting voltage outputs of 5V, 9V, and 12V.
Is this device energy efficient when not in use?
Yes, the power consumption is extremely low, at less than 0.3W when in standby mode.
What type of installation is required?
It is designed for flush-mounted installation using quick connection terminals. It requires a minimum installation box depth of 40 mm and is compatible with 1.5-2.5 mm² cables.
Is the module suitable for industrial environments?
Yes, it is rated for IP20 protection and has an impact strength rating of IK04, making it suitable for commercial, industrial, and residential general-purpose applications.
